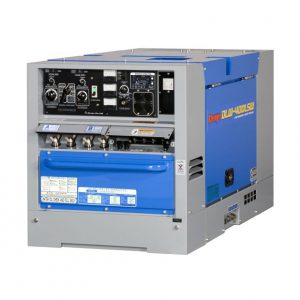

Diesel Engine Welder Denyo DAW-500S

Mesin Las / Welder Denyo DAW-500S

Enquiry
Categories: ,

Description

Mesin welder/las bahan bakar diesel Denyo DAW-500S.

Fitur yang ada pada mesin las Denyo DAW-500S :

    • Performa las yang meningkat
    • Ringan dan bodi yang ringkas untuk kemudahan manuver di lokasi
    • Konsumsi bahan bakar yang ekonomis
    • Penambahan faktor keamanan

Keterangan tambahan :

    • Untuk pemesanan dan pertanyaan bisa klik “ENQUIRY” untuk informasi lebih lengkap
    • Harga dan stok dapat berubah sewaktu-waktu tanpa pemberitahuan

Specifications Welder Diesel

DC WELDING GENERATOR

Model DAW-500S
Type Permanent magnet type
Rated speed 2800 min
Rated output DC 18kw
Rated current 460A
Rated voltage 38.4V
Current range 40~500A
Applicable electrode 2.6-8 mm
Duty cycle 75%

AUXILIARY AC POWER

Maximum output 3.0kW
Rated voltage 100/110/120/200/220/230/240V
Frequency 50Hz or 60Hz

ENGINE

Model Kubota D-1703
Type 4-cycle, water-cooled diesel engine
Rated output 25.4kw (34.5PS)/280min
No. Of cylinders 3
Displacement 1.647 L
Fuel ASTM No. 2 diesel fuel or equivalent
Fuel consumption 5.2L/hr
Fuel tank capacity 45L
Starting system Electric starting
Cooling system Water-cooled by radiator with fan
Dimension (L x W x H) 1260 x 800 x 870 mm
Dry weight 435 kg
